6 min. read

Highlight - The Builder Pattern

A creational design pattern created to decouple details into a friendly API for constructing an object.

Builder Design pattern

The builder design pattern focuses on specifying parts for the object and finally constrcuting it.
This allows a “Full” construction or Partial construction.

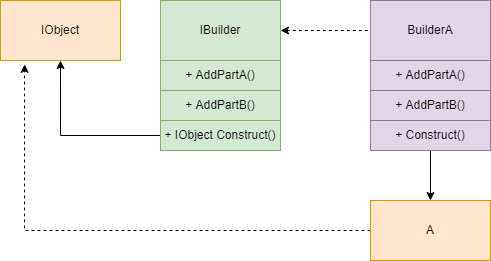

Diagram and Usage

IBuilder constructs abstractions based on parts added by construction methods - AddPartA() and AddPartB().

Finally Construct returns a concrete object of IObject.

A good addition to the pattern is returning the same object on construction so the API can be chained.
Example:
Builder.AddPart("one").AddPart("two").Build();

C# Example of the diagram

public interface IObject { }

public interface IBuilder
{
    IBuilder AddPartOne(string part);
    IBuilder AddPartTwo(string part);
    IObject Construct();
}

public class A : IObject
{
    public string Content { get; set; }
}

public class ABuilder : IBuilder
{
    private StringBuilder mBuilder = new StringBuilder();
    private StringBuilder mBuilderTwo = new StringBuilder();

    public IBuilder AddPartOne(string part)
    {
        mBuilder.Append(part);
        return this;
    }

    public IBuilder AddPartTwo(string part)
    {
        mBuilderTwo.Append(part);
        return this;
    }

    public IObject Construct()
    {
        return new A()
        {
            Content = $"{mBuilder.ToString()}\n{mBuilderTwo.ToString()}";
        };
    }
}

public class Program
{
    public static void Main()
    {
        var builder = new ABuilder();
        var a = builder.AddPartOne("A").AddPartTwo("B").Construct();
    }
}

Example 1: Alchemy crafting

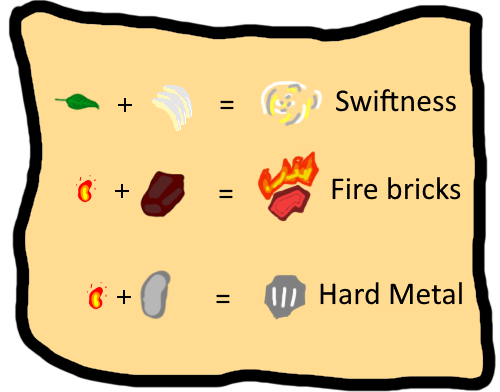

I like to use fantasy like examples for systems because it shows how creative you can get with these patterns.

Recipe	Result
Leaves + Claws	Swiftness
Fire + Bricks	Fire bricks
Fire + Metal	Hard Metal

We need an ingredient:

public class Ingredient
{
    public string Name { get; set; }
    public Guid ID { get; set; }
}

Now we need a recipe:

public class Recipe
{
    public IReadonlyCollection<string> Ingredients {get; init;}
}

Let’s assume that our game engine contains an Item which is also an Ingredient:

public class Item : Ingredient
{

}

Now we need an alchemy engine:

public interface IAlchemyCraft
{
    IAlchemyCraft Add(Ingredient ing);
    Item Combine();
}

Now we can craft the alchemy crafting system based on recipes:

public class AlchemyRecipeCrafts : IAlchemyCraft
{
    private IDictionary<Recipe, Func<Item>> mRecipes;
    private IList<Ingredient> mIngredients;

    public IAlchemyCraft Add(Ingredient ing)
    {
        mIngredients.Add(ing);
        return this;
    }

    public Item Combine()
    {
        if(!HasRecipe())
        {
            return null;
        }

        Recipe recipe = new Recipe
        {
            Ingredients = mIngredients
        };
        var item = mRecipes[recipe]();
        mIngredients.Clear();
        return item;
    }

    public void AddRecipe(Recipe p, ItemFactory factory)
    {
        mRecipes.Add(p, factory);
    }

    private bool HasRecipe() { /* ... */}
}

AlchemyRecipeCrafts contains a list of current ingredients which are cleared when we combine them.
We need to create the recipes for the defined items.
Swiftness, Fire Brick and Hard Metal.

Usage:

AlchemyRecipeCrafts crafting = new AlchemyRecipeCrafts();

Recipe swiftnessRecipe = new Recipe
{
    Ingredients = new List<Item>() { new Leaves(), new Claws()}
};
crafting.AddRecipe(swiftnessRecipe, () => new Swiftness());

Recipe fireBricks = new Recipe
{
    Ingredients = new List<Item>() { new Fire(), new Brick()}
};
crafting.AddRecipe(fireBricks, () => new FireBricks());

Recipe hardMetal = new Recipe
{
    Ingredients = new List<Item>() { new Fire(), new Metal()}
};
crafting.AddRecipe(hardMetal, () => new HardMetal());

var swiftness = crafting.Add(new Leaves()).Add(new Claws()).Combine();

In this manner we can construct items dynamically.

This specific system lacks few things:

Amount of items are not specified in Recipes.
Item is a static class - to make it more generic we should construct item classes not by specific classes but by the generic class.
For example: new Item() { Name="Claws", Type = ItemType.Ingredient };
Of course it depends on the game engine.
Configuring the recipes (For example with json) to create items.

Example 2: Abstracting SQL as a builder:

One of my favorite examples for this pattern is constructing SQL statements.

The system contains a table of people, this is the class:

1	public readonly record struct Person(string Name, int Age);

The statement builder:

public interface IStatementBuilder<T>
{
    IEnumerable<T> Fetch();
}

public interface IPersonFetcher : IStatementBuilder<Person>
{
    IStatementBuilder WithName(string name);
    IStatementBuilder WithNames(IEnumerable<string> name);
    IStatementBuilder BetweenAge(int min, int max);
}

Usage:

1
2
3

IPersonFetcher fetcher = new PersonFetcher();

var people = fetcher.WithNames(new string[] {"Bob","Alice"}).BetweenAge(20,60).Fetch();

The SQL built may look like so:

1
2
3

SELECT * FROM People
WHERE `name` like '%Bob%' OR `name` like '%Alice%'
AND Age > 20 AND Age < 60;

Alternatives

The builder design pattern allows to construct an item from many ingredients.
If we don’t need that kind of behavior we may use the alternatives:

Factory - Abstract away the creation process.
Prototype - Clones an object.
Singelton - Creates a single instance.

In the Alchemy example we actually used a factory lambda.
The Func<Item> is a factory for items using a lambda.

The Factory pattern is more common than the Builder pattern,
Yet I prefer the Builder for constructing more complex objects.

The SQL example is very pracical and as you can see it simplifies the usage of statement construction.

Thanks for reading!
